Dual Interface Plate | AMG Actuators Ltd

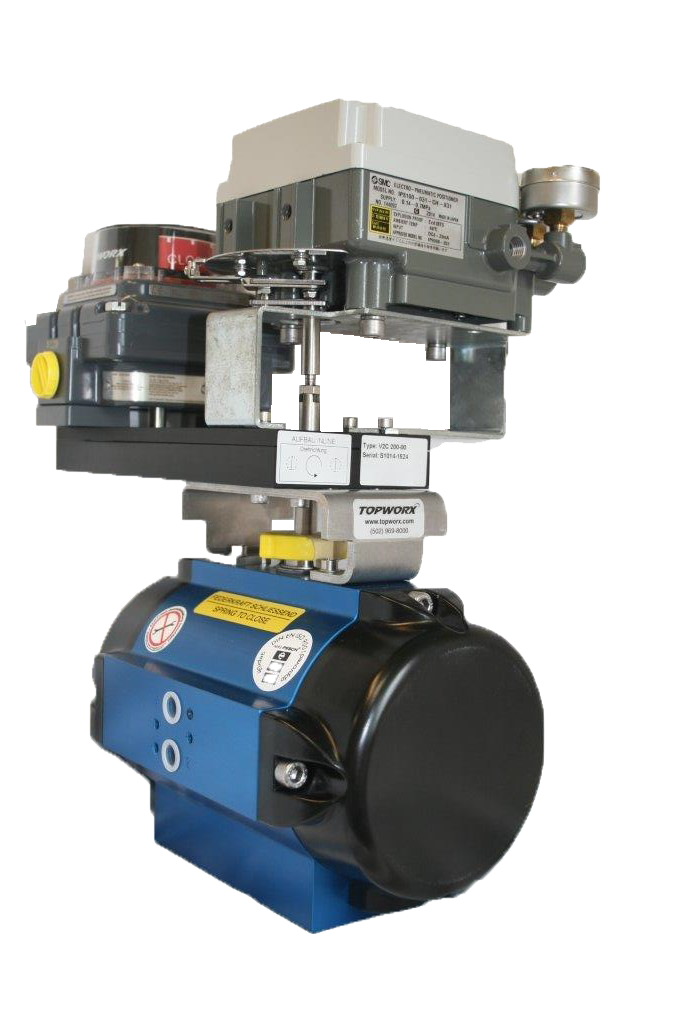

Through elegant design and an innovative approach, the dual interface plate negates the need for complex and/or exposed linkage systems when mounting multiple monitoring/control devices to a single actuator interface. With both housing and cover being anodized aluminium and the pinions and internal components being 304 stainless steel, this is a compact, robust and versatile unit. Rated to IP66 with an operating temperature range of -30°C to +80°C (-50°C to +60°C optional) the dual interface plate is well suited to many applications and environments.


  • All interfaces in accordance with VDI/VDE 3845
  • The completely mechanical transmission is play free.
  • Maintenance free execution.
  • Allowable mechanical load up to 10Nm.
  • Housing and cover in anodized Aluminium
  • Pinions and mechanical parts in 304 Stainless Steel
  • Rated to IP66
  • Temperature range -30°C to +80°C (-50°C to +60°C Optional)
  • Fully stainless steel unit available for arduous or offshore applications
